SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch

Name: SFP AC100V 1000Mbps Fiber Optic Switch Single Mode Fiber Switch
Brand: Hioso
Price: 1 USD

China SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch wholesale

Brand Name : Hioso

Model Number : FOWAY6200-28FS

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000psc/month

Delivery Time : 2-10 working days

Packaging Details : 44mm (H)*440mm(W)*210mm (D)

Type : FTTH Solution

Ports : 24 1000M SFP + 4 10G SFP+ Uplink port

MAC : 16K

Transmisson rate: 1000Mbps : 1000Mbps

Power : AC100-240v

Dimension : 44mm (H)*440mm(W)*210mm (D)

Contact Now

Product Description

SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch

FOWAY6200-28FS 24 1000M SFP + 4 10G SFP+ Uplink Fiber Switch

Character ✔Support 24 100/1000M SFP (or SFP-1000BaseT RJ45 ) access and 4 10G SFP+ uplink port (1000M/10G) ✔Support the default 100M,1000M SFP,the SFP-1000BaseT RJ45 and 10G SFP+ hot plug ✔Support full rate, full-duplex non-blocking forwarding at each port ✔Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc

Technical Specification
Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree Protocol,IEE802.1w Rapid STP,IEE802.1s Multiples STP,IEE802.1q Vlan,IEE802.1q Qos,IEE802.3ad Trunk,IEE802.3X Flow Control
Wavelength	SFP:850nm/1310nm/1490nm/1550nm
Distance	100M SFP Multi-mode: 2km (fiber size 62.5/125μm or 50/125μm) Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP Multi-mode: 220m (fiber size 62.5/125μm)/550m(fiber size 50/125 μm) Single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode:10/20/40/60/80/100/120Km CAT5: 100m
Port	24 Gigabit SFP fiber ports: 1000Mbps,1000M SFP / SFP-1000BaseT 4 10G SFP+ port:10 Gbps, 1G SFP/10G SFP+ 1 console management port 1 100M RJ45 management port
MAC	16K
Buffer memory space	12Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	AC 110-230V
Power consumption	33W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	44mm (H)×440mm(W)×210mm (D)

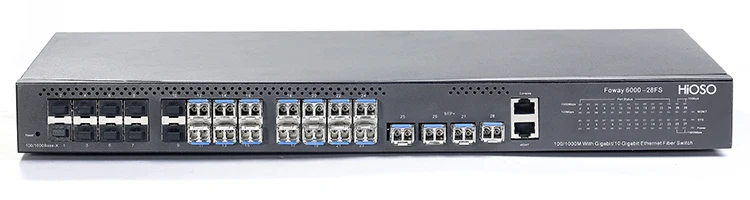

Details Images

24 1000M SFP PORTS

4 10G SFP+ Uplink

POWER:AC100-240V

Product Usage

Product Tags:

AC100V Fiber Optic Switch

1000Mbps Fiber Optic Switch

1000Mbps single mode fiber switch

SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch Images
