CCC Approval 8 1000M SFP Ports 850nm Fiber Optic Switch 8 Port

Name: CCC Approval 8 1000M SFP Ports 850nm Fiber Optic Switch 8 Port
Brand: Hioso
Price: 1 USD

China CCC Approval 8 1000M SFP Ports 850nm Fiber Optic Switch 8 Port wholesale

Brand Name : Hioso

Model Number : FOWAY1509FCM

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000psc/month

Delivery Time : 2-10 working days

Packaging Details : 28mm (H)*193mm(W)*119mm (D)

Type : fiber switch, FTTx Solutions

Product name : FOWAY1509FCM

Ports : 8 1000M SFP ports + 1 1000M Combo uplink

MAC : 8K

Working temperature : -10~60℃

Power consumption : 7.9W

Wavelength : 850nm/1310nm/1490nm/1550nm

Dimension : 28mm (H)*193mm(W)*119mm (D)

Contact Now

Product Description

CCC Approval 8 1000M SFP Ports 850nm Fiber Optic Switch 8 Port

FOWAY1509FCM
8 1000M SFP + 1 Combo Uplink Fiber Switch

Feature
✔Support SFP hot swap
✔Support DHCP, PPPoE, ACL, LLDP
✔Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth,1632 byte large frame forwarding ✔Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault ✔All optic ports, strengthen the an-interference ability
✔Metal casing design (support to hang on the wall), better for heat dissipation

Technical Specification
Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1q Qos,IEEE802.3ad Trunk,IEEE802.3X Flow Control
Wavelength	850nm/1310nm/1490nm/1550nm
Distance	100M SFP multi-mode: 2Km Single-mode: 25/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	8 1000M SFP fiber ports: 1000Mbps 1 Gigabit Combo port:1 Gbps, 100M/1000M SFP&10/100/1000M RJ45
Management	WEB / SNMP
MAC	8K
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC12V/AC220V
Power consumption	7.9W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	28mm (H)×193mm(W)×119mm (D)

Details Images

Product Usage

Product Tags:

CCC Approval fiber optic switch 8 port

850nm fiber optic switch 8 port

850nm high speed optical switch

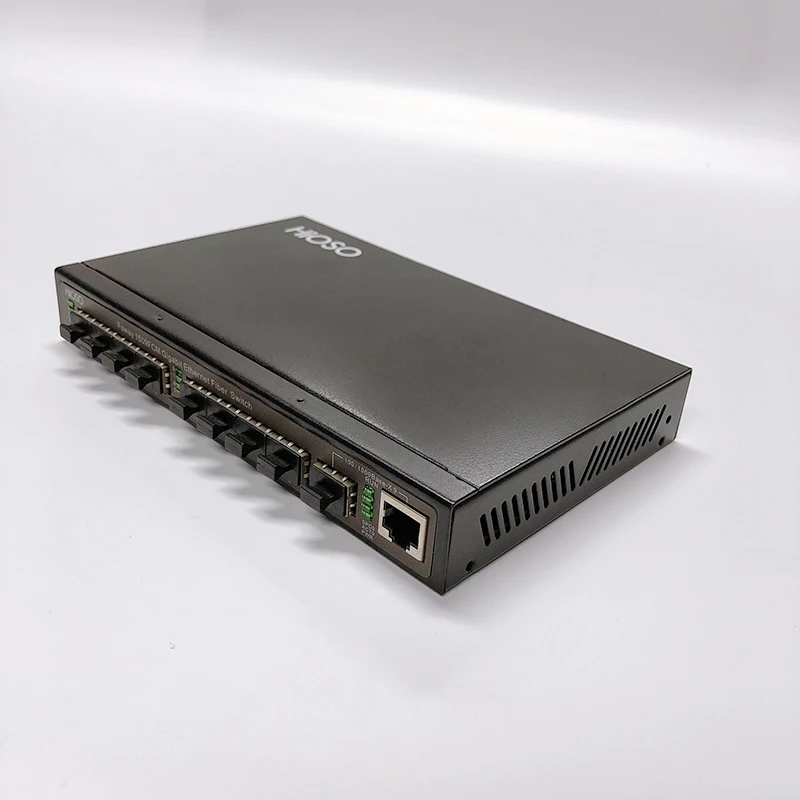

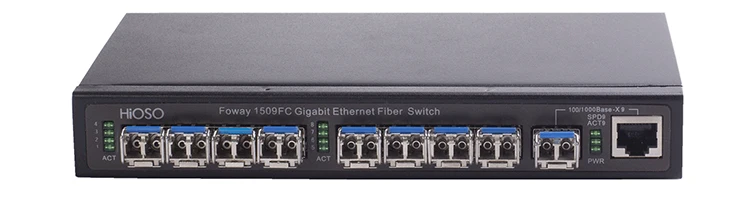

CCC Approval 8 1000M SFP Ports 850nm Fiber Optic Switch 8 Port Images
